Elata E400 Hybrid Mattress System
One mattress, two levels of care. The E400 is a hybrid mattress designed for adaptable pressure care. Used alone, it offers static foam and air support to help prevent and treat Stage 2 injuries. With the addition of the pump EP10AU, it transitions seamlessly into dynamic alternating therapy, delivering effective treatment up to Stage 4.
| Features | E400 with Pump | E400 without Pump |
|---|---|---|
| System Type | Hybrid (air-foam) | Hybrid (air-foam) |
| Use | Clinical | Clinical |
| Pressure Injury Stage | Stage 1-2 w/o pump, Stage 3-4 with pump | Stage 1-2 w/o pump, Stage 3-4 with pump |
| Safe Load | 230 Kg w/o pump, 250 Kg with pump | 230 Kg w/o pump, 250 Kg with pump |
| Sizes (cms) | S: 88 x 200 x 19.5 - KS: 107 x 200 x 19.5 | S: 88 x 200 x 19.5 - KS: 107 x 200 x 19.5 |
| Static Head Support | Yes | Yes |
| Heal Relief Slope | Yes | Yes |
| Heel Offload | Yes | Yes |
| Elata Pump | X | EP10AU |
| Tiltsense™ | X | X |
| Up to 12 Hour Battery Life | X | X |
| CPR Valve | X | X |
| Cable Tide | Yes | Yes |
| Profile Height | 19.5 cm | 19.5 cm |
Technical Specification
Core System & Use

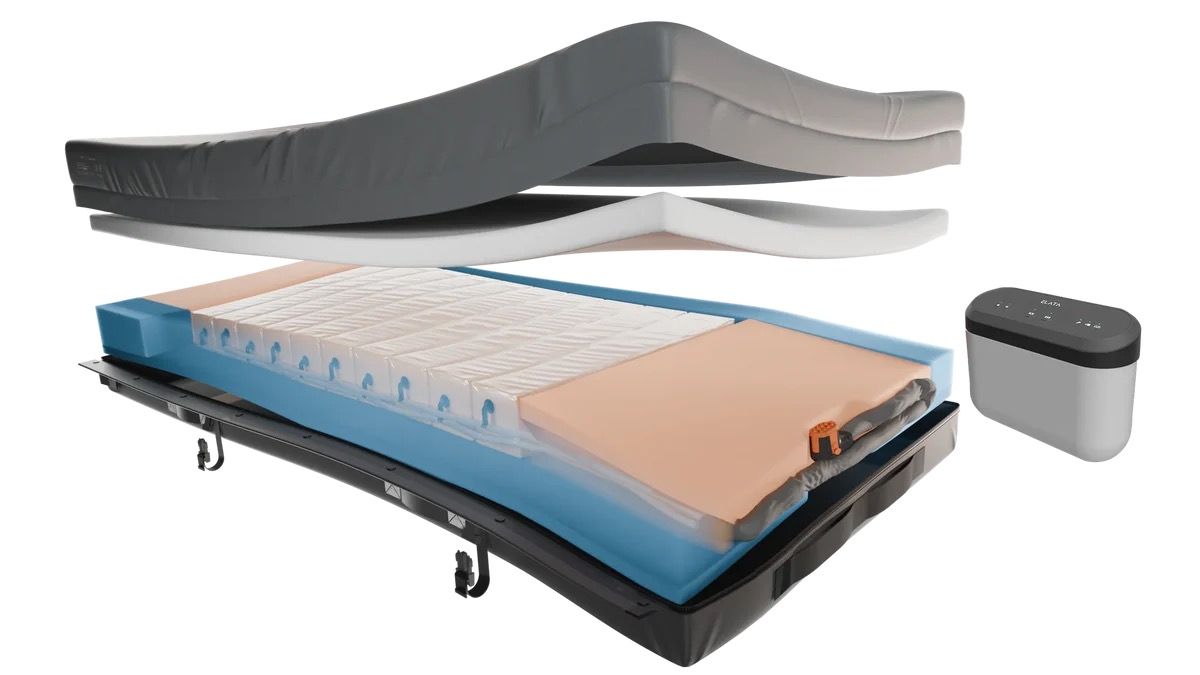

System Type: Hybrid mattress with paired air cells and profiled foam inserts, supported by a rebound foam layer for airflow and natural movement.
Clinical Use:
- Prevention and management of pressure injuries as a standalone mattress.
- With the EP10AU pump, delivers alternating pressure therapy suitable for treatment of pressure injuries up to stage 4.
Size & Capacity
- Mattress sizes: Single: 88 x 200 x 19.5 cm - King Single: 107 x 200 x 19.5 cm
- Firmness & Profile: Medium-firm, 19.5 cm profile
- Safe Working Load: Up to 230 Kg without pump - Up to 250 Kg with pump
Protection & Safety Features
Cover Technology:
- Pure Guard Cover — Four-way stretch, vapour-permeable, antimicrobial surface that reduces shear and supports skin protection.
- Hydro Lock Barrier — Welded seams and a liquid-resistant zip flap prevent fluid ingress and protect the mattress core.
Pressure Relief Features:
- Anti-shear surface reduces tissue strain
- Heel relief zone offloads pressure on vulnerable areas.
- Reinforced side walls for stability
- Stability Core base with anti-slip underside for secure placement
Warranty
*Warranty Terms- Mattress: 5 years warranty
- Pump: 10 years conditional warranty*
