Elata E600 1-in-2 Alternating

Air Mattress System

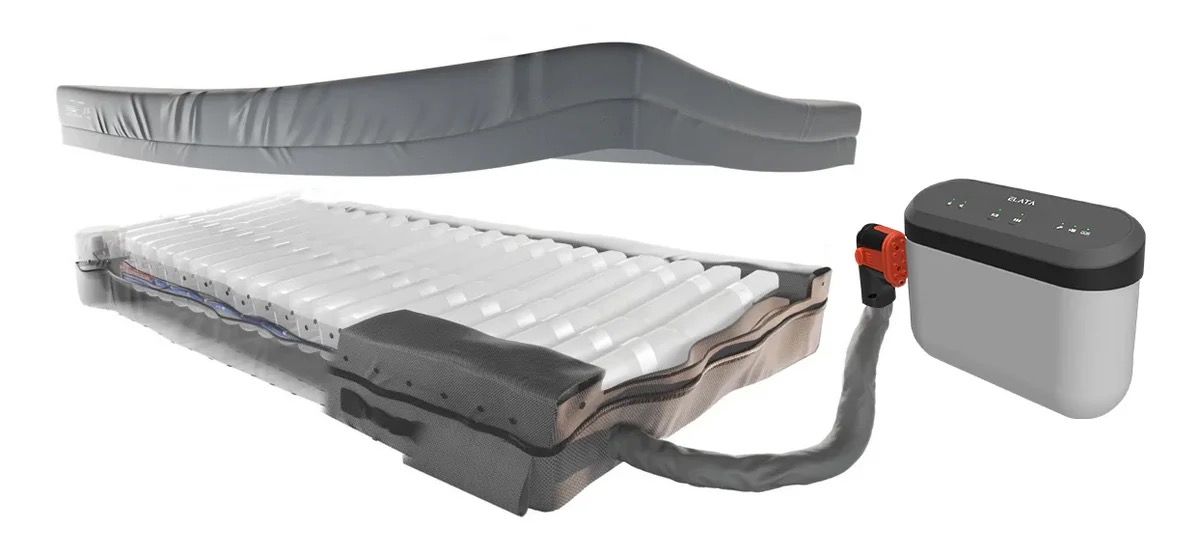

The E600 mattress is a full replacement surface designed for patients at very high risk of pressure injury. With 20 multi-layered air cells configured with 1-in-2 alternating cell cycle and a static head section, it provides consistent weight redistribution and stable cranial support. Built with heel relief and reinforced construction, it offers dependable comfort, and when combined with a quiet, user-friendly pump, the E600 provides uninterrupted therapy up to Stage 4 treatment, making it a trusted choice for complex care.

Features E600
System Type Alternating Air (1-in-2 cells)
Use High-risk Pressure, Surgical, Frailty
Pressure Injury Stage Stage 4
Safe Load 200 Kg
Sizes (cms) S: 90 x 200 x 20 - KS: 105 x 200 x 20
Static Head Support Yes
Heal Relief Slope X
Heel Offload Yes
Elata Pump EP10AU
Tiltsense™ X
Up to 12 Hour Battery Life X
CPR Valve Yes
Cable Tide Yes
Profile Height 20 cm
Brochure Download Alternating Air System E600 Manual Alternating Air Systems Pressure Map

Technical Specification

  • Core System & Use

    System Type:  Full replacement alternating air mattress system with 20 transverse air cells.


    Clinical Use:  Very high-risk prevention and treatment of pressure injuries up to Stage 4, including patients in surgical recovery, with advanced frailty, or complex care needs.

  • Size & Capacity

    • Mattress sizes: Single: 90 cm × 200 cm × 20 cm - King Single: 105 cm × 200 cm × 20 cm
    • Safe Working Load: Supports patients up to 200 kg

  • Protection & Safety Features

    Construction: 20 TPU air cells with a 1-in-2 alternating air cell structure; static lower region in each cell (one-third static, two-thirds alternating) to reduce bottoming out; static head section for steady upper-body positioning; self-sealing connections for faster servicing.


    Pressure Relief Features: Anti-shear surface that moves with the body to reduce tissue stress; dedicated heel protection zone for offloading vulnerable heels (bottom cells should be deflated to offload heels)


    Safety Features: Twist CPR valve at the head end for rapid deflation; integrated cable tidy for safe cable management.


  • Warranty

    • Mattress: 5 years warranty
    • Pump: 10 years conditional warranty*
    *Warranty Terms
